Always-On Coverage, Always-On Networking

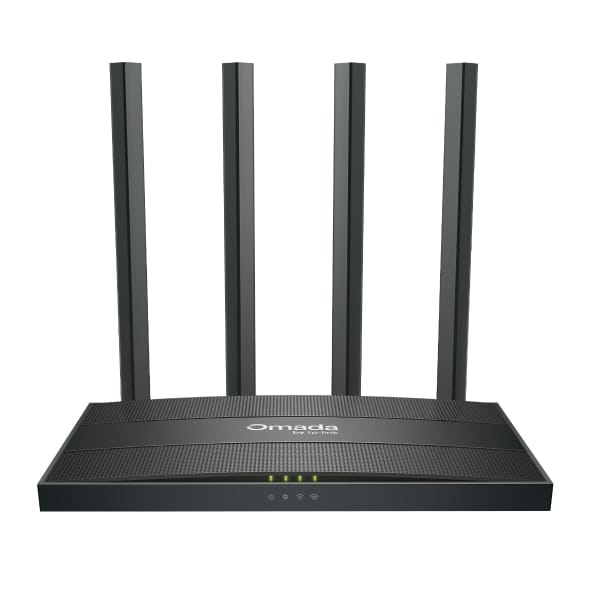

The TP-Link ER605W Omada AC1200 Gigabit Wi-Fi Gateway delivers enterprise-grade networking performance perfect for retail stores, small shops, branch offices, and businesses requiring reliable, centrally-managed network infrastructure.

Key Features

High-Performance Wireless

  • AC1200 Dual-Band Wi-Fi (867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz)
  • 4× High-Gain 5 dBi External Antennas for enhanced coverage
  • MU-MIMO and OFDM technology for efficient wireless connectivity
  • 16 SSIDs total (8 per radio) for flexible network segmentation

Robust Connectivity

  • 5× Gigabit Ethernet Ports (1× WAN, 2× WAN/LAN, 2× LAN)
  • Load Balancing across up to 3× WAN Ports
  • Intelligent failover and link backup
  • 50,000 concurrent sessions

Enterprise VPN Support

  • Multiple VPN protocols: IPSec, PPTP, L2TP, OpenVPN, WireGuard, and GRE
  • Up to 6 IPSec VPN tunnels for secure site-to-site connectivity
  • One-click Auto IPSec VPN configuration
  • Perfect for remote work and multi-site businesses

Comprehensive Security

  • Advanced firewall with DoS defense
  • IP/MAC/URL filtering for granular access control
  • ARP inspection and IP-MAC binding
  • VLAN support (802.1Q)
  • Web security and content filtering

Centralized Cloud Management

  • Omada Cloud SDN integration
  • Remote management via web browser and Omada App
  • Multi-site management from single interface
  • Automatic device discovery and intelligent monitoring
  • Works with Omada Hardware/Software Controllers

Technical Specifications

Hardware

  • Flash: 128 MB NAND
  • RAM: 256 MB DDR3
  • Dimensions: 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)
  • Power: 12V DC / 1A (Max 10.3W)
  • Mounting: Desktop or Wall-mounting

Performance

  • NAT Throughput: Up to 938 Mbps
  • VPN Performance:
    • WireGuard: 71.2 Mbps
    • L2TP (encrypted): 127.5 Mbps
    • IPSec: High-security encrypted tunnels
  • New Sessions/Second: 2,028
  • Packet Forwarding: 1,453,489 pps (66 byte packets)

Advanced Routing

  • Static routing
  • Policy routing
  • RIP and OSPF support
  • Application-optimized routing

Additional Features

  • DHCP server with address reservation
  • Multi-Net DHCP and Multi-IP interfaces
  • IPv6 support (SLAAC, DHCPv6, PPPoE, 6to4 Tunnel)
  • IPTV support with IGMP v2/v3
  • UPnP and multiple ALG protocols
  • Web authentication (Hotspot, RADIUS, LDAP)

Ideal For

  • Retail stores and small shops
  • Branch offices and multi-site businesses
  • Organizations requiring centralized network management
  • Businesses needing secure VPN connectivity
  • Professional installations requiring reliable performance

What’s Included

  • ER605W Gateway
  • 12V/1A Power Adapter
  • Ethernet Cable
  • Quick Installation Guide

Environmental Specifications

  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10% to 90% non-condensing

Certifications

CE, FCC, RoHS compliant

Perfect for Straight Forward Technology Installations

The ER605W is an excellent choice for our managed services clients requiring enterprise-grade networking with centralized management. Its Omada SDN integration allows us to remotely monitor and manage your network infrastructure across multiple locations from a single interface.

Contact us today to learn how the TP-Link ER605W can enhance your business network infrastructure.
