Description
Overview

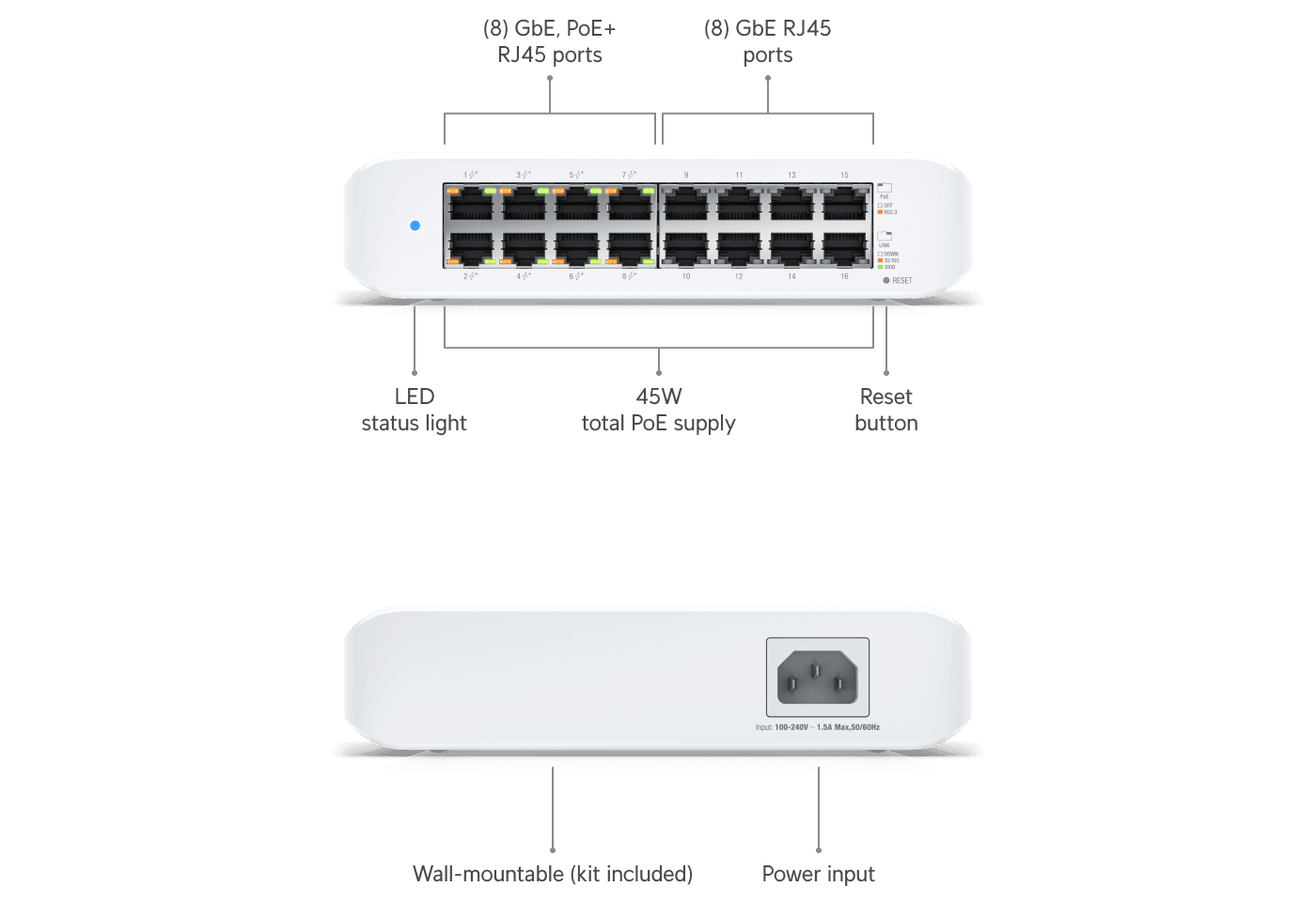

The UniFi Switch Lite 16 PoE is a compact, fanless 16-port Layer 2 switch that brings enterprise-grade networking to homes and small businesses without the noise or complexity. With eight PoE+ ports delivering up to 45W total power, it’s the ideal choice for powering access points, VoIP phones, and security cameras from a single, wall-mountable unit.
This switch is part of Ubiquiti’s UniFi ecosystem, meaning it integrates seamlessly with the UniFi Network application for centralised management of your entire network. The fanless design keeps it silent — perfect for office environments, retail spaces, or anywhere noise matters.
Key Features
The USW-Lite-16-PoE packs serious networking capability into a surprisingly compact package. All 16 ports support Gigabit speeds, with 8 of those ports capable of delivering PoE+ power up to 32W per port. The 45W total PoE budget is enough to run several access points or IP cameras without needing separate power supplies cluttering your installation.
Layer 2 switching features include VLAN support for up to 1,000 VLANs, LACP port aggregation for link bonding, and comprehensive security features like 802.1X authentication, DHCP snooping, and storm control. STP and RSTP ensure loop-free networks, while IGMP snooping optimises multicast traffic for IPTV and video streaming applications.

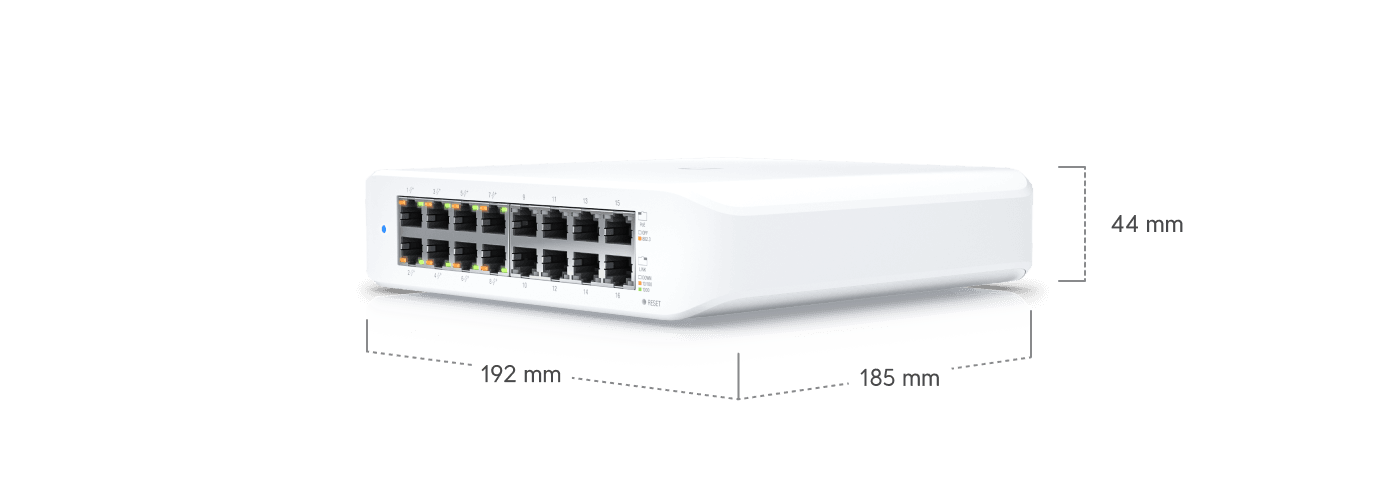

The polycarbonate enclosure is designed for versatility — mount it on a wall, tuck it under a desk, or install it in a server cabinet. The compact 192 x 185mm footprint means it fits just about anywhere.
Technical Specifications
| Model | USW-Lite-16-PoE |
| Ports | 16 × GbE RJ45 (8 × PoE+) |
| Total PoE Budget | 45W |
| Max PoE per Port | 32W (PoE+) |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 24 Mpps |
| VLANs Supported | 1,000 |
| MAC Address Table | 8,000 entries |
| Dimensions | 192 × 185 × 44 mm |
| Weight | 1.2 kg |
| Power Input | 100–240V AC, 50/60 Hz |
| Max Power Consumption | 60W (including PoE output) |
| Operating Temperature | -15 to 40°C |
| Certifications | CE, FCC, IC, NDAA Compliant |
Applications

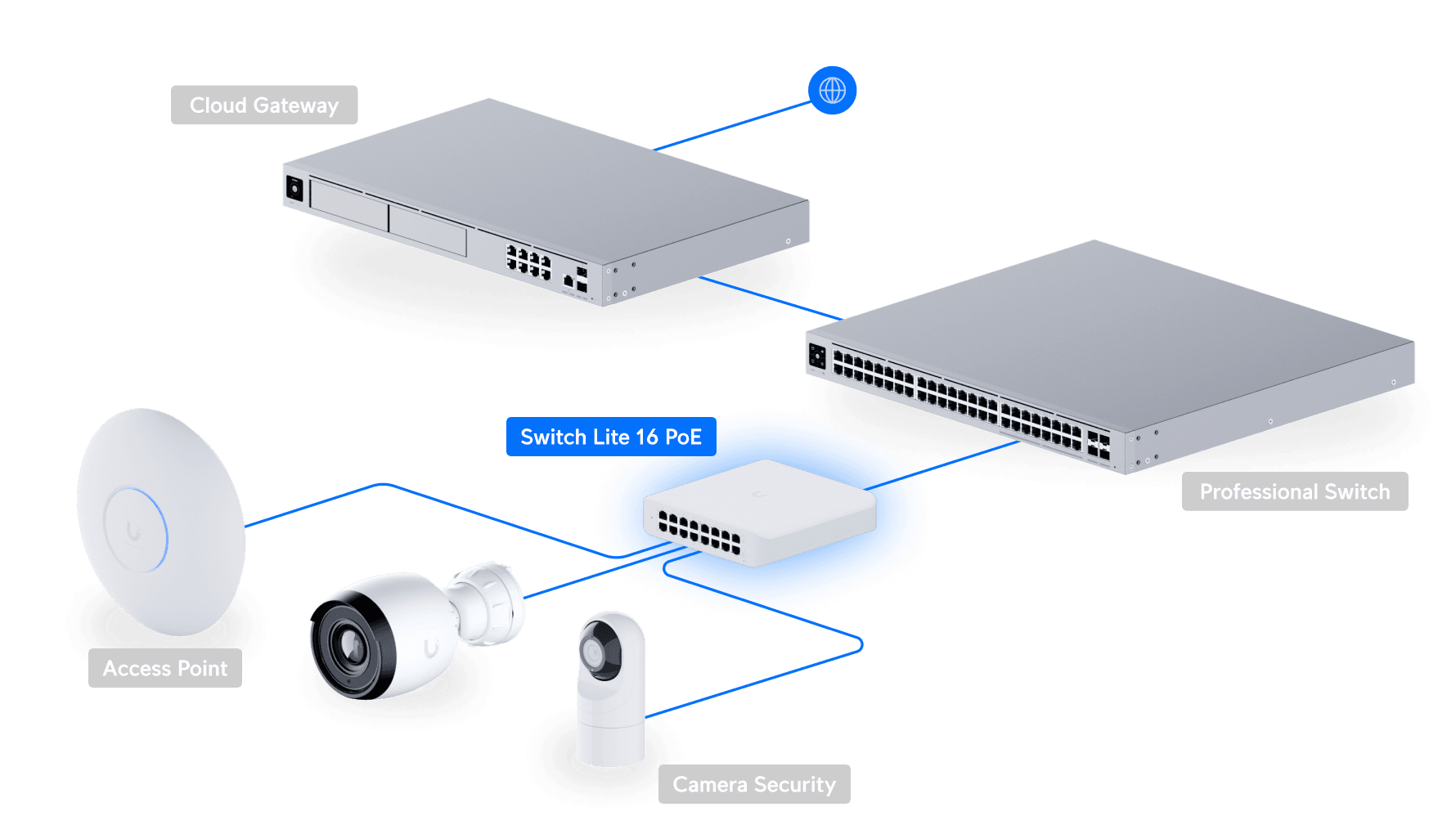

The UniFi Switch Lite 16 PoE is a solid choice for small offices, retail shops, and home networks where you need to power PoE devices without installing bulky rack equipment. We’ve deployed these across Melbourne for clients who need a reliable way to power their UniFi access points, IP phones, and compact security camera setups.
It’s particularly well-suited to environments where noise is a concern — the fanless design means it won’t add to the background hum in a quiet office or living space. Wall-mounting keeps it out of the way while still providing easy access to all 16 ports.
What’s in the Box
The USW-Lite-16-PoE ships with the switch unit, internal 60W power supply with AC cable, wall-mount bracket, and quick start guide. No external power injectors or adapters required — everything you need to get up and running is included.
Downloads & Resources
Note: Downloads link to the manufacturer’s website.
Professional Installation & Support
Straight Forward Technology provides expert installation and configuration of Ubiquiti UniFi networking equipment across Melbourne and the Mornington Peninsula. Our team can integrate this switch into your existing network, configure VLANs for proper traffic segmentation, and ensure your PoE devices are optimally positioned and powered.
Contact us for a free consultation and quote on professional installation, or explore our managed service packages for ongoing network monitoring and support.
