Description
Overview

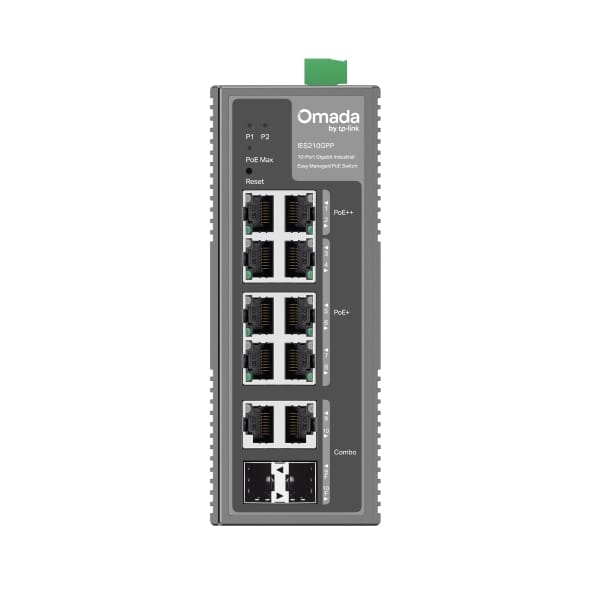

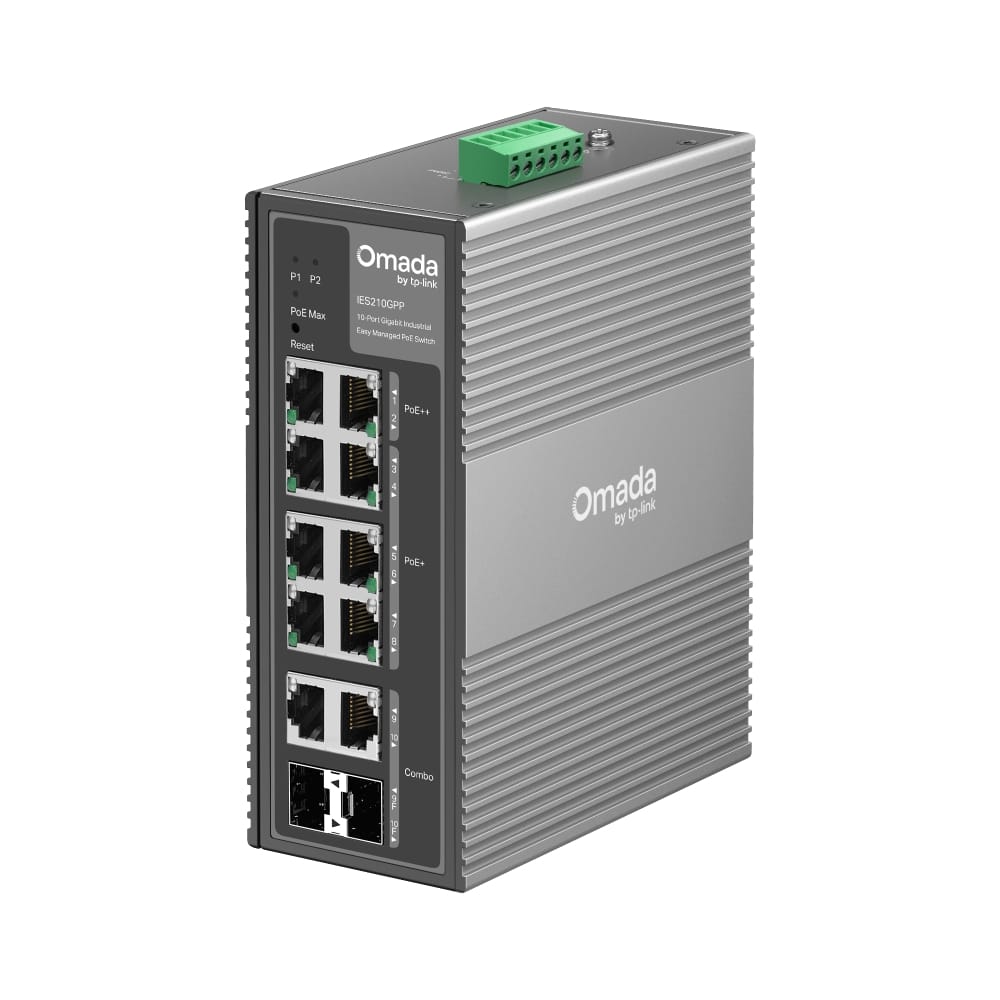

The TP-Link Omada IES210GPP is a 10-port Gigabit industrial switch purpose-built for demanding environments where standard networking equipment simply won’t cut it. Featuring eight Gigabit RJ45 PoE ports (including two PoE++ ports delivering up to 60W each) and two Gigabit combo RJ45/SFP slots, this switch provides serious power and flexibility for surveillance systems, industrial automation, and harsh outdoor installations.
With a total PoE budget of up to 240W, the IES210GPP can power multiple high-draw devices like PTZ cameras, access points, and IP intercoms without needing separate power supplies scattered around your site. The industrial-grade IP40-rated aluminium casing handles operating temperatures from -40°C to +75°C, making it a solid choice for electrical cabinets, outdoor enclosures, and plant floors where conditions are far from ideal.
Part of the Omada SDN ecosystem, the switch integrates seamlessly with Omada Cloud management for remote monitoring and configuration across multiple sites — particularly handy when you’re managing deployments across Melbourne and beyond without wanting to roll a truck for every minor change.
Key Features
The IES210GPP delivers 240W of total PoE power across its eight powered ports. Two of those ports support the latest PoE++ standard (IEEE 802.3bt), providing up to 60W each for high-power devices like motorised PTZ cameras and video door stations. The remaining six ports support PoE+ (802.3af/at) at up to 30W per port — plenty for standard IP cameras and access points.
Industrial protection is baked in from the ground up. The unit handles extreme temperatures from -40°C to +75°C, features 6kV lightning/surge protection on all Ethernet ports, and sits in a fanless aluminium enclosure rated IP40. For critical installations, the dual 12-57V DC power inputs provide 1+1 redundancy — if one power supply fails, the switch keeps running without skipping a beat. A dedicated fault alarm connector lets you tie into external monitoring systems for instant notification of power or port issues.
Networking features include VLAN support (up to 32 groups), QoS for traffic prioritisation, STP/RSTP for loop prevention, and link aggregation for increased bandwidth between switches. The switch supports PoE Extend Mode, pushing PoE range out to 250 metres (at 10Mbps) — useful for reaching cameras at the far corners of warehouses or carparks where standard 100m runs won’t reach.
Technical Specifications
| Model | IES210GPP |
| Ports | 8× Gigabit RJ45 (2× PoE++, 6× PoE+) + 2× Gigabit Combo RJ45/SFP |
| PoE Standards | IEEE 802.3af/at/bt |
| PoE Budget | Up to 240W (varies with input voltage) |
| PoE++ Power | Up to 60W per PoE++ port |
| PoE+ Power | Up to 30W per PoE+ port |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 15 KB |
| Power Input | 12-57V DC, 1+1 Redundant |
| Surge Protection | ±6kV (Ethernet), ±4kV (DC Power) |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Enclosure Rating | IP40 Aluminium |
| Dimensions | 155 × 120 × 60 mm (6.1 × 4.7 × 2.4 in) |
| Mounting | DIN-rail or Wall-mount |
| Certifications | FCC, CE, RoHS |
Applications
The IES210GPP is ideal for surveillance and security installations where cameras need to operate in extreme conditions — think warehouses, loading docks, cold storage facilities, and outdoor carparks. The PoE++ ports handle high-power PTZ cameras and video door stations without needing local power supplies, while the industrial rating ensures reliable operation through Melbourne’s summer heat or a freezing cold room.
Industrial automation applications benefit from the switch’s rugged construction and DIN-rail mounting, allowing installation directly in electrical cabinets alongside PLCs and motor controllers. The wide voltage input range (12-57V DC) integrates easily with existing industrial power systems.
Smart building projects — including access control panels, IP intercoms, and environmental sensors — can run off a single IES210GPP, simplifying cabling and reducing installation costs. The fault alarm output provides peace of mind for critical infrastructure where network downtime isn’t an option.
What’s in the Box
The IES210GPP ships with the switch unit, DIN-rail mounting bracket, wall-mounting plates, and an installation guide. Power supplies are not included — you’ll need to source 12-57V DC power appropriate for your installation (the higher the voltage, the more PoE power available).
