Overview
The TP-Link Omada EAP610 is a high-performance WiFi 6 access point built for businesses that need reliable, fast wireless coverage. With AX1800 dual-band speeds reaching up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, it delivers the bandwidth modern workplaces demand for video calls, cloud applications, and multiple connected devices.

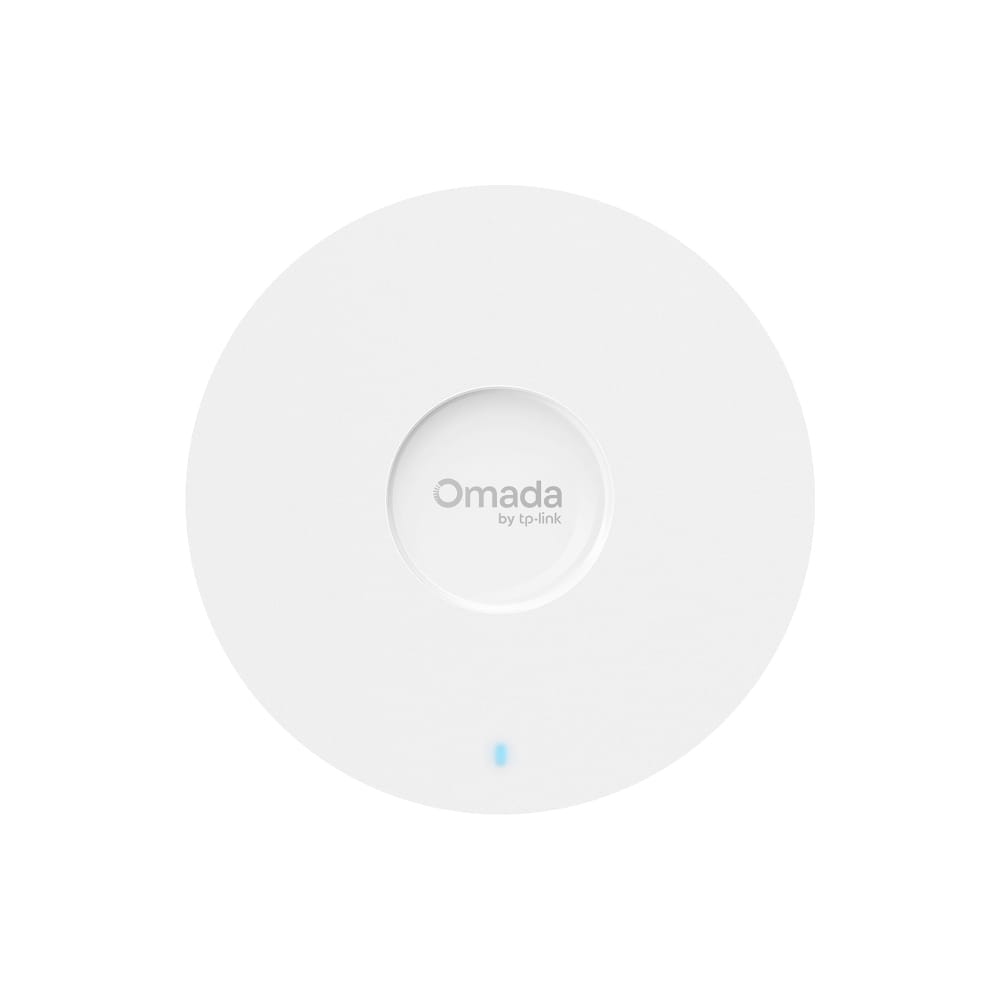

Designed to mount discreetly on ceilings or walls, the EAP610 blends into any professional environment while providing coverage up to 115 square metres. It’s part of the TP-Link Omada ecosystem, meaning you can manage it through cloud-based controllers, on-premises hardware, or the Omada app—giving you flexibility whether you’re running a single office or multiple sites.
Key Features
WiFi 6 brings genuine performance improvements to busy networks. The EAP610 supports OFDMA and MU-MIMO technologies, which allow the access point to communicate with multiple devices simultaneously rather than one at a time. This means better performance in environments where many people are connected—offices, retail spaces, hospitality venues, and schools all benefit from this efficiency.
The unit supports 802.3af PoE, Passive PoE, or DC power (adapter included), making installation straightforward regardless of your existing infrastructure. A single gigabit ethernet cable can provide both data and power, keeping cabling clean and simple. For security, you get WPA3 encryption, up to 16 separate SSIDs for guest networks and departmental separation, captive portal authentication for visitor access, and rogue AP detection to identify unauthorised devices on your network.
Seamless roaming (802.11k/v/r) and mesh capability ensure users stay connected as they move throughout your premises—no dropped connections during calls or annoying network switches when walking between areas.
Technical Specifications
| Model | EAP610 V4 |
| Wireless Standard | IEEE 802.11ax/ac/n/g/b/a (WiFi 6) |
| Frequency | Dual-band: 2.4 GHz and 5 GHz |
| Speed | AX1800 (5 GHz: 1201 Mbps, 2.4 GHz: 574 Mbps) |
| Ethernet | 1× Gigabit RJ45 Port |
| Power | 802.3af PoE, 48V Passive PoE, or 12V/1A DC (adapter included) |
| Max Power Consumption | 10.9W (PoE) / 9.9W (DC) |
| Coverage | Up to 115 m² (1,250 ft²) |
| Concurrent Clients | 250+ |
| Antenna | Internal Omni (2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi) |
| SSIDs | Up to 16 (8 per band) |
| Security | WPA/WPA2/WPA3-Personal/Enterprise, 802.1X, Captive Portal |
| Dimensions | 160 × 160 × 33.6 mm (Ø160 × 33.6 mm) |
| Mounting | Ceiling, wall, or junction box (kits included) |
| Operating Temperature | 0–40°C |
| Certifications | CE, FCC, RoHS |
Applications
The EAP610 suits any business environment requiring dependable WiFi coverage. Office buildings benefit from the centralised management and seamless roaming—staff can move between floors and meeting rooms without interruption. Retail stores can create secure guest networks for customers while keeping business systems on separate SSIDs. Hotels and hospitality venues appreciate the high client capacity and captive portal for guest authentication.
Schools, healthcare facilities, and warehouses all represent environments where reliable wireless connectivity directly impacts productivity. The EAP610’s combination of performance, security features, and manageable pricing makes it a practical choice for these deployments.
What’s in the Box
The EAP610 package includes the access point unit, a 12V power adapter, ceiling and wall mounting kits, junction box mounting hardware, and an installation guide. Everything needed for deployment is included—just add a PoE switch or use the included adapter.
Downloads & Resources
Note: Downloads link to the manufacturer’s support portal.
Professional Installation & Support
Straight Forward Technology provides expert installation and configuration for Omada WiFi systems across Melbourne and the Mornington Peninsula. Our technicians handle site surveys, optimal access point placement, controller setup, and network configuration—ensuring your wireless network performs reliably from day one.
We also offer ongoing support through our managed service packages, including monitoring, firmware updates, and configuration changes as your needs evolve. Contact us for a free consultation and quote on professional installation.
