Description
Overview
The RAXX WC12U is a robust 12U wall mount rack cabinet built to organise and protect your networking equipment, security systems, and communications hardware. Made from cold-pressed steel, this cabinet delivers the durability and security you need for mission-critical infrastructure while keeping cables tidy and equipment properly ventilated.
Designed for wall mounting, this cabinet is ideal for server rooms, comms closets, and anywhere you need professional-grade equipment housing without taking up floor space. It arrives fully assembled and ready to install—just mount it to the wall and start racking your gear.
Key Features

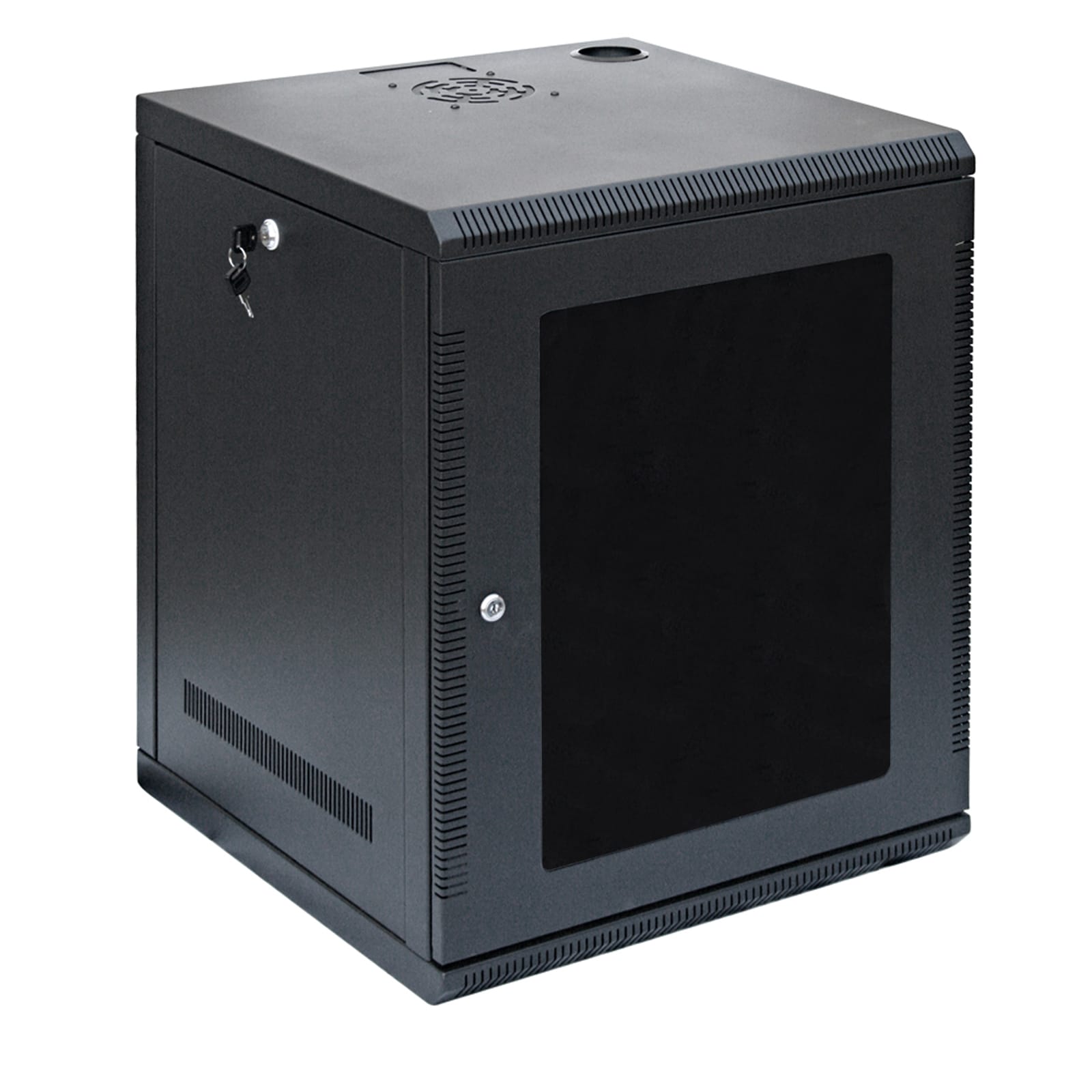

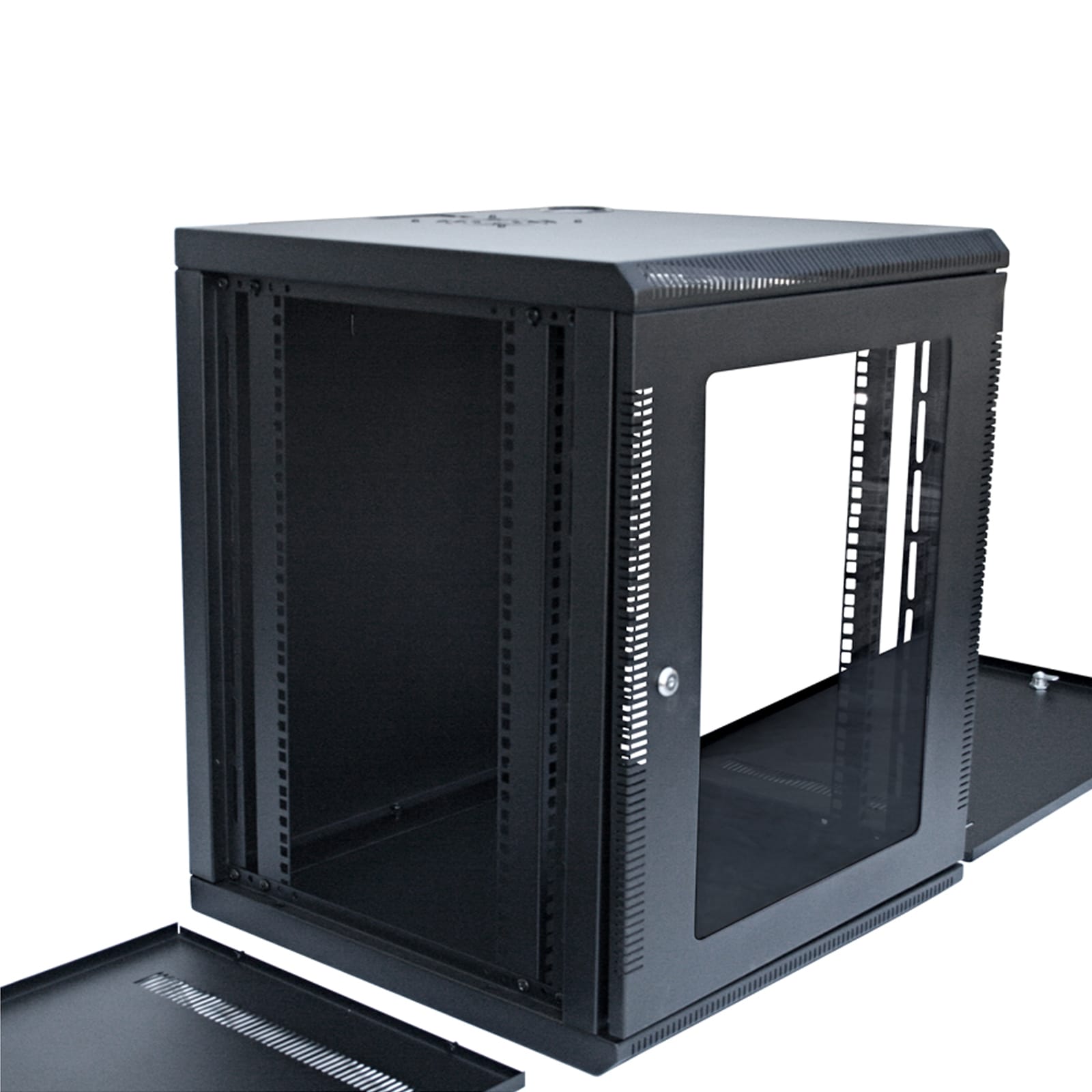

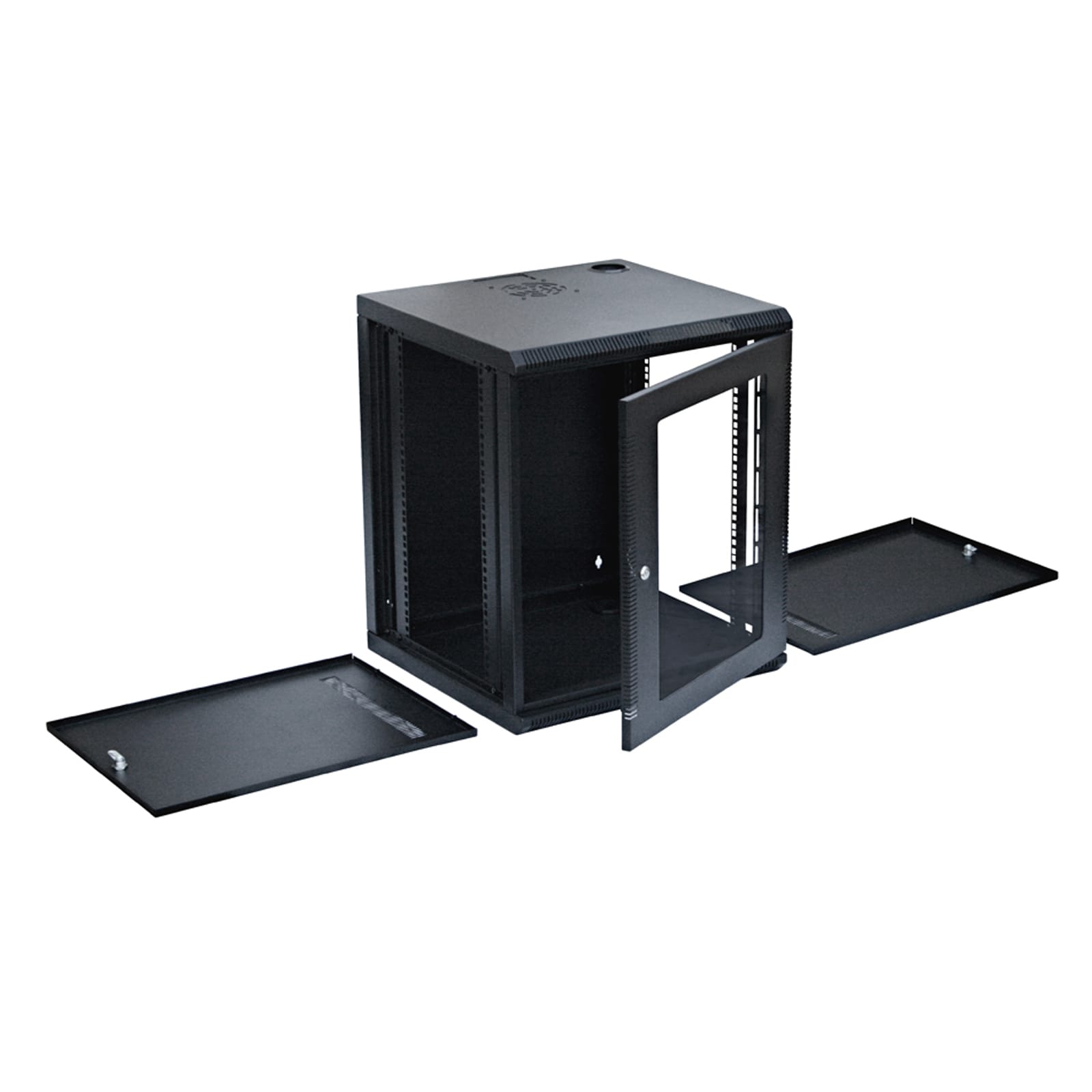

The WC12U features a lockable front door with a transparent acrylic glass panel, giving you visual access to your equipment while keeping it secure. Both side panels are removable and independently lockable, providing easy access for maintenance and cable management. The depth-adjustable 19-inch mounting posts accommodate a wide range of equipment depths.

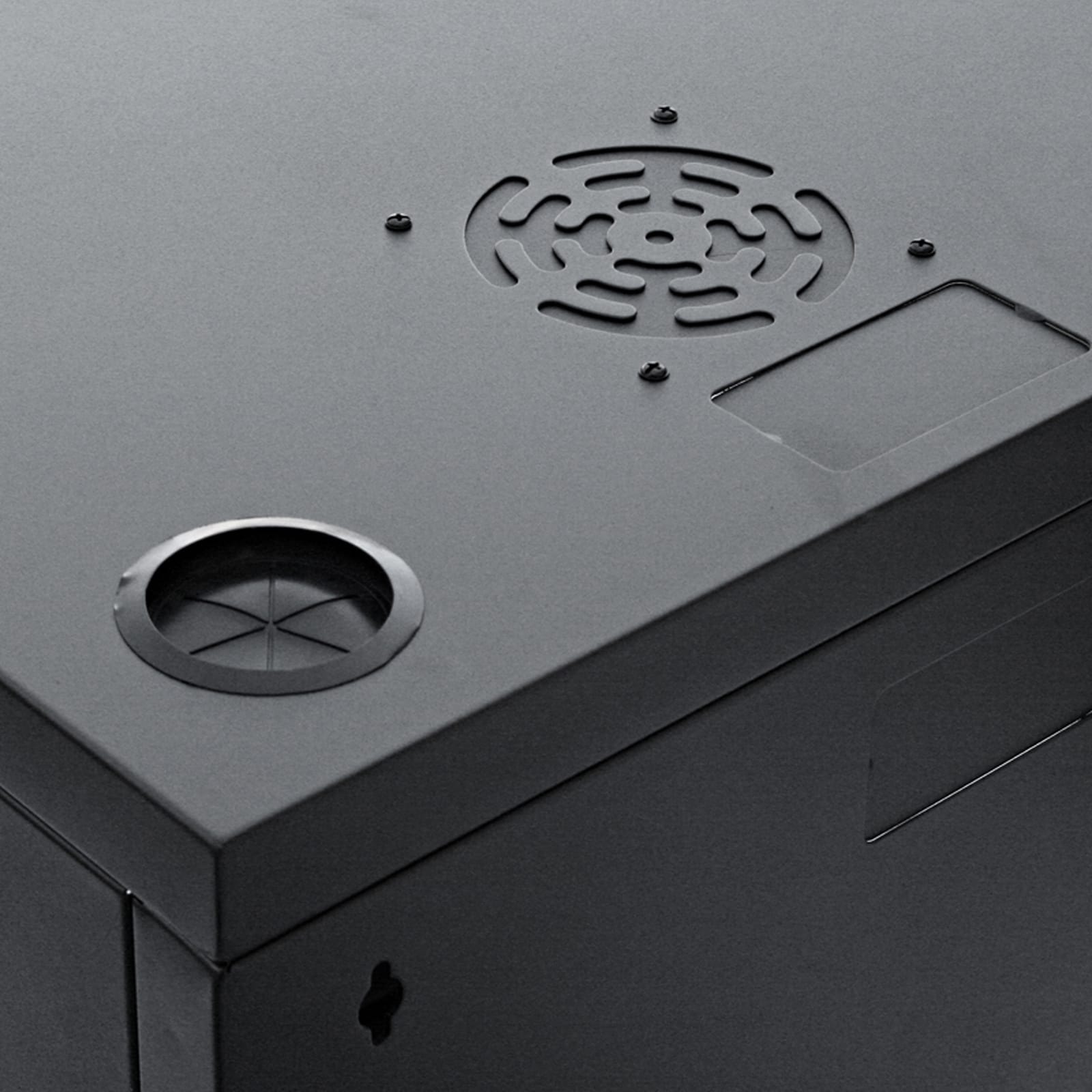

Ventilation is well considered, with perforated panels throughout and provision for a 120mm cooling fan in the top panel. Cable management is straightforward thanks to entry points in both the top and bottom of the cabinet, allowing you to route cabling cleanly regardless of your installation requirements.
One particularly clever feature is the reversible door hinge system. Using a spring-loaded mechanism, you can switch the door to open from either the left or right side—no tools required. This makes the cabinet genuinely adaptable to tight or awkward installation spaces where door clearance might otherwise be an issue.
Technical Specifications
| Model | WC12U |
| Rack Units | 12U (12RU) |
| Rack Standard | 19-inch |

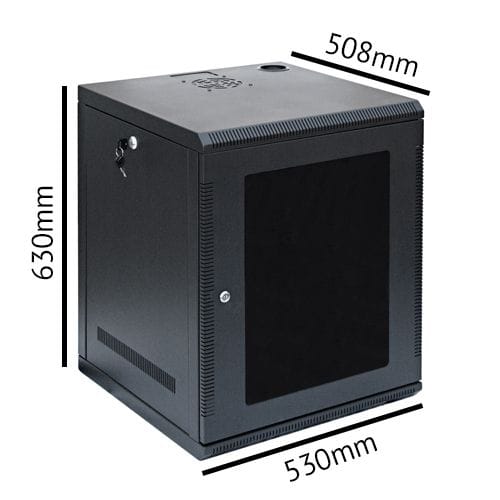

| External Width | 530mm |
| External Height | 630mm |
| External Depth | 508mm |
| Internal Depth | 450mm |
| Rail-to-Rail Depth | 420mm (front to rear mounting strips) |
| Wall Mount Spacing | 440mm horizontal |
| Static Load Capacity | 60kg |
| Construction | Cold-pressed steel |
| Front Door | Acrylic glass panel, lockable |
| Side Panels | Removable, lockable |
| Fan Provision | 1x 120mm (top panel) |
| Assembly | Pre-assembled |
| Warranty | 12 months |
Applications
This cabinet is well-suited for a range of professional installations. Network administrators will find it perfect for housing patch panels, switches, and structured cabling terminations. It’s an excellent choice for DVRs and NVRs in CCTV installations, keeping your recording equipment secure and ventilated. Small business telephone systems, including PBX and PABX equipment, fit neatly into the 12U capacity.
With a 60kg static load rating, the WC12U can handle substantial equipment loads while the wall-mount design keeps your floor space clear—particularly valuable in smaller comms rooms or retail back-of-house areas.
What’s in the Box
The RAXX WC12U comes fully assembled and includes mounting screws and captive nuts for racking your equipment, plus two keys for each lock (front door and side panels). Wall mounting hardware is not included—you’ll need to source appropriate fixings for your wall type.
